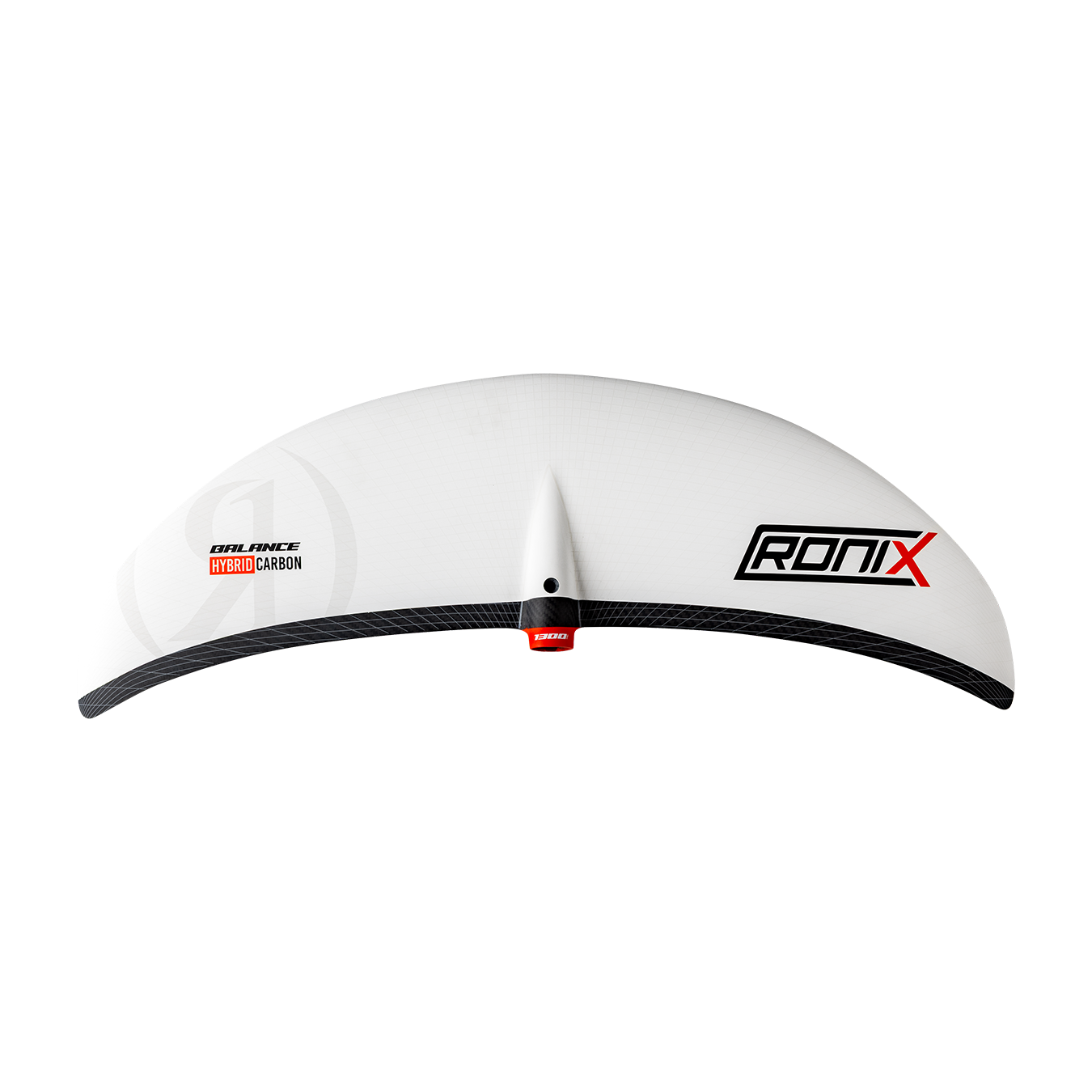

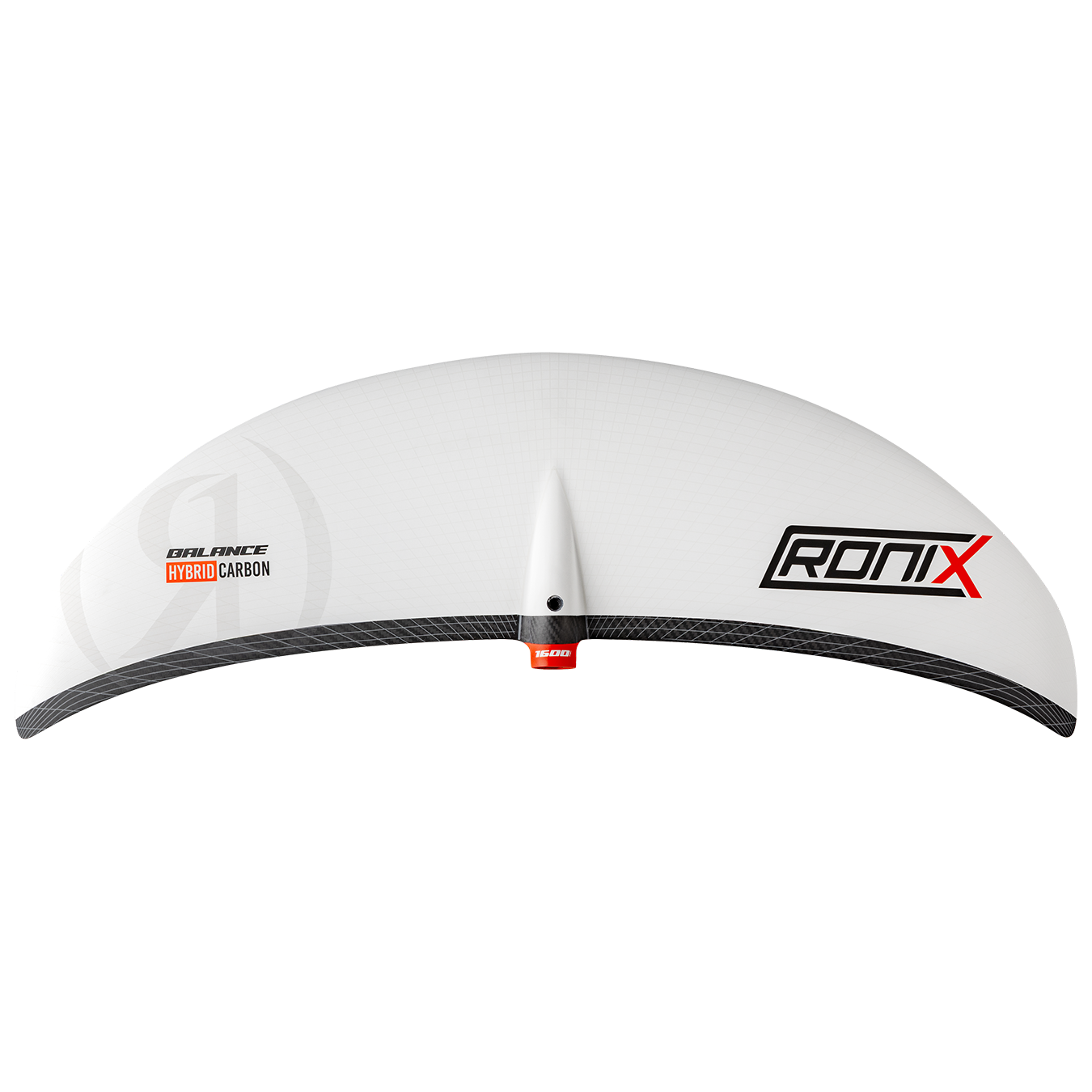

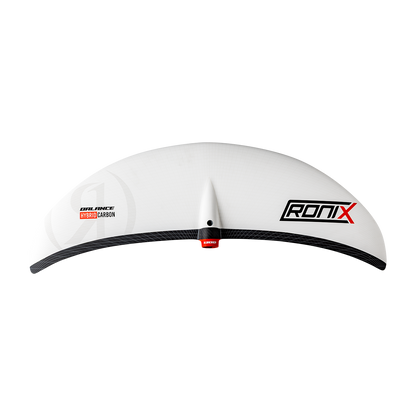

Hybrid Carbon Balance Front Wing
Hybrid Carbon Balance Front Wing
- Low Stock (Only 2 left)
Product Description
A shape, construction and even artwork designed for the greatest maiden voyage of your life. The Ronix Hybrid Carbon Balance Front Wing ups the ante on consistency and stability with a rhythmic flow of movements. This series will ask you what floor on the elevator you want to reach – and most importantly – keep you there with our unique twist winglet design. Available in 1300cm² and 1600cm².
Features
Controlled Flight Path
Eliminates the common problem of uncontrolled lift. No more skyrocketing to the top or plunging to the bottom – this wing keeps you at your specified flight pattern.
Unique Twist Winglet Design
Proprietary winglet design that maintains your elevation and provides exceptional control throughout your ride.
Elliptical Outline
Nimble turn that easily rolls over to edge with additional width for quick, responsive edge hold and precise control.
Sweet Spot Stability
Quickly sets you in the sweet spot and maintains your specified flight pattern with quicker reacting edge hold.
Autoclave Manufacturing
High grade carbon fibers molded in proprietary autoclave machine for the cleanest and most exact manufacturing process available in foiling.
White Paint Finish
White paint over carbon fiber provides a visual frame of reference for depth perception in relation to the water.
Specifications
Balance 1600cm²
Wing Span: 84cm
Average Chord: 20.5cm
Aspect Ratio: 4.4
Balance 1300cm²
Wing Span: 76cm
Average Chord: 18.5cm
Aspect Ratio: 4.4
*Hardware included with purchase
Understanding Aspect Ratios
This is where it all starts. The personality of your levitating experience. A proper flight begins and ends with a front wing set to your cadence and velocity.
Aspect Ratio is the division of chord width by wingspan. Here's how our wings mimic nature's evolution of flight:
Lower Aspect Ratio - Balance Series
Shorter wingspan built for short distances with emphasis on increased stability and effortless controlled turns. As stability increases, wingspans shorten, get wider, thicker, more elliptical, and curl up at the end.
Higher Aspect Ratio - Speed Series
Longer wingspan with narrower depth allows flight over long distances without as much flapping. As speed increases, wingspans expand, get narrower, flatter, and more streamlined at the end.
Wing Comparison
Rating: 1-100 scoring system comparing all Ronix front wing models.
| Model | Size | Turning Radius | Glide Efficiency | Stability | Pumping Power | Deepwater Start | Lift | Stall Speed |
|---|---|---|---|---|---|---|---|---|
| Balance | 1300cm² | 81 | 80 | 97 | 78 | 93 | 75 | 93 |
| Balance | 1600cm² | 76 | 80 | 97 | 81 | 93 | 80 | 95 |
| Speed | 1130cm² | 89 | 87 | 89 | 81 | 85 | 78 | 90 |
| Speed | 1330cm² | 84 | 87 | 89 | 84 | 85 | 83 | 92 |
| Speed | 1530cm² | 79 | 87 | 89 | 87 | 85 | 88 | 94 |
| High Aspect | 910cm² | 97 | 94 | 81 | 92 | 78 | 91 | 84 |
| High Aspect | 1110cm² | 93 | 93 | 90 | 93 | 74 | 91 | 84 |
Performance Definitions: Turning Radius (how tight of an arced turn), Glide Efficiency (wing's natural speed), Stability (predictability and forgiveness), Pumping Power (energy generated per pump), Deepwater Start (how easy to get up), Lift (natural rise created), Stall Speed (speed needed to maintain lift).
O² Infusion Technology
Where high end dreams become reality. Wings made by air.
Advanced Carbon Laminates
Complex spread toe carbon laminates layered with pre-cured resin, each with a specific degree of angle for optimal strength, reactiveness, weight reduction, and vertical/torsional stiffness.
F1-Inspired Manufacturing
Process usually reserved for F1 wings. A lighter, more responsive, environmentally friendly way of molding parts without any unused resin.
Dry Carbon Infusion
Carbon laminates go in "dry" with just the right amount of frozen epoxy infused into the fibers for optimal performance.
Air Chamber Formation
Each product is placed in an air chamber where air is reduced. Through 2-hour formation, evenly dispersed pressurized oxygen molds every portion equally.
Perfect Molding
No crease or flash line – just a perfectly altered part without stress points. The thinnest, purest profile available.
Hydrodynamic Authority
Displaces water with greater efficiency. All aspects of your flight become lighter, more reactive, and faster.
Hybrid Carbon Construction
An infused autoclave development evolved – we learned that this style of manufacturing wings compliments aluminum masts and fuselages. This layup makes a more buoyant part offsetting the increased weight of an aluminum mast.
Complementary Composition
Creates more natural rise/lift by complementing the mast, generating more pressure on the board for direct transfer when pumping.
Hydrodynamic Complexity
A hydrodynamically complex construction with the most simplistic easy-to-use design for the greatest maiden voyage of your life.
Design & Attachment
6-Sided Keyhole Fit
Easily attaches to our fuselage with finite tolerance that only mounts one way – preventing the embarrassing mistake of mounting your wing upside down.
Reinforced Attachment
3 reinforced countersunk holes for easy attachment with screws fitting flush when attached. Reinforced to prevent wear and tear over extended use.
Anti Twist Design
Asymmetrical hexagon outline eliminates side-to-side slip with the front wing for secure, stable connection.
Hardware Included
Complete mounting hardware included for immediate installation and use.
